Twin-sheet plastic sleeve boxes 1200*1000

Blister / Blow / Injection molding

Blister molding

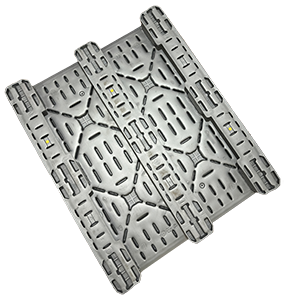

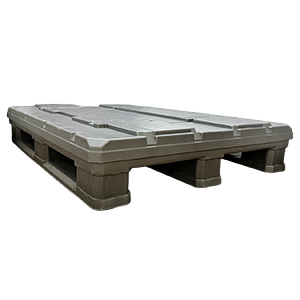

Twin-sheet plastic sleeve boxes 1200*1000-Hump safety stop type

Free Download

Please complete the following for access to the free download.

Item No.HD-CM1210-3 RUNNERS
Material:HDPE(lid & pallet)+PP(honeycomb sheets)
External DIM(mm):1200*1000*760/ 860/ 1000/ 1050/…
Any customized height
Internal DIM(mm):1135*935*545/645/785/835...
External -215
sleeve height(mm):Total height-120
Folded height(mm):1200*1000*205
pallet & lid weight (kg):21 kgs(pallet:13kg + lid:8kg)
Locks:Optional , 4 locks at lid,4pcs at bottom pallet
Honeycomb sleeve:11.3mm 3.0 kg/ m211.3mm 4.0kg/m2
Static load(kg):1+3 (1200kg),height<900mm
1+2 (1200kg),height>900mm		1+3 (2000kg),height<900mm
1+2 (2000kg),height>900mm
Dynamic load(kg):1+2 (900kg),height<900mm
l+l (900kg),height>900mm		1+2 (1500kg),height<900mm
l+l (1500kg),height>900mm
Single box load(kg):300Kg500Kg
Folding times:≥30,000 times
Temperature:-20°c- 55°c
Service life:More than 3 years
Folding type:M-folding
Steel Reinforcement:Yes,optinal for 4 pcs steel tubes
Dynamic load with reinforcement(kg):1000kg
Packing quantity:100 sets/20G260 sets/40H
Runners:Optional,3 runners
Blow molding

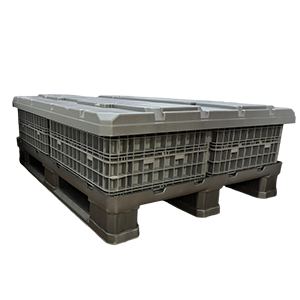

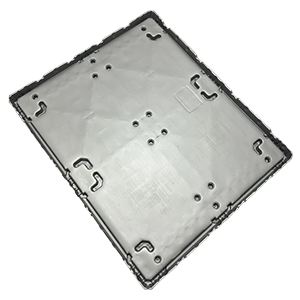

Twin-sheet plastic sleeve boxes 1200*1000-sunken safety stop type

Free Download

Please complete the following for access to the free download.

Item No.HD-CM1210-BM
Material:HDPE(lid & pallet)+PP(honeycomb sheets)
External DIM(mm):1200*1000*500/760/ 860/ 1000/ 1050/...
Any customized height
Internal DIM(mm):1140*940*320/ 580/ 680/ 820/ 870/...
External -180
sleeve height(mm):Total height-120
Folded height(mm):1200*1000*205
pallet & lid weight (kg):20 kgs(pallet:11kg + lid:9kg)
Locks:Optional, 4 locks at lid,4pcs at bottom pallet
Honeycomb sleeve:11.3mm 3.0kg/m211.3mm 4.0kg/m2
Static load(kg):1+3 (1200kg),height<900mm
1+2 (1200kg),height>900mm		1+3 (2000kg),height<900mm
1+2 (2000kg),height>900mm
Dynamic load(kg):1+2 (900kg),height<900mm
1+1 (900kg),height>900mm		1+2 (1500kg),height<900mm
1+1 (1500kg),height>900mm
Single box load(kg):300Kg500Kg
Folding times:≥30,000 times
Temperature:-20°c - 55°c
Service life:More than 3 years
Folding type:M-folding
Steel Re inforcement :No.
Packing quantity:160sets/20G460 sets/40H
Injection molding

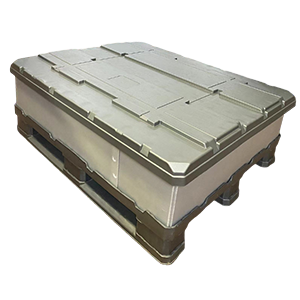

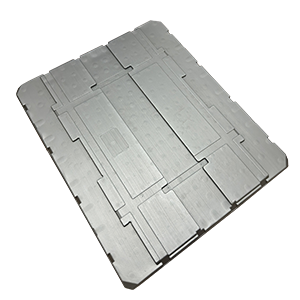

Plastic sleeve boxes 1200*1000

Free Download

Please complete the following for access to the free download.
Item No.HD-ZS1210
Material:HDPE(lid & pallet)+PP(honeycomb sheets)
External DIM(mm):1200*1000*760/ 860/ 1000/ 1050/...
Any customized height
Internal DIM(mm):1130*930*330/ 590/ 690/ 830/ 880/...
External -175
sleeve height(mm):Total height -125
Folded height(mm):1200*1000*205
pallet & lid weight (kg):23kg/26.5kg (9 feet pallet: 15.5kg+7.5kg
/ 3 runners pallet: 19kg+ lid:7.5kg)
Locks:Optional , 2 locks at lid,2pcs at bottom pallet
Honeycomb sleeve:11.3mm 3.0kg/m211.3mm 4.0kg/m2
Static load(kg):1+3 (1200kg),height<900mm
1+2 (1200kg),height>900mm		1+3 (2000kg),height<900mm
1+2 (2000kg),height>900mm
Dynamic load(kg):1+2 (900kg),height<900mm
l+l (900kg),height>900mm		1+2 (1500kg),height<900mm
l+l (1500kg),height>900mm
Single box load(kg):300Kg500Kg
Folding times:≥30,000 times
Temperature:-20°c- 55°c
Service life:More than 3 years
Folding type:M-folding
Steel Reinforcement:Yes,optional for 4pcs steel tubes
Dynamic load with reinforcement(kg):1000kg
Packing quantity:100 sets/20G260 sets/40H
Bottom pallet type:3 runners/9 feet
Blister / Blow molding

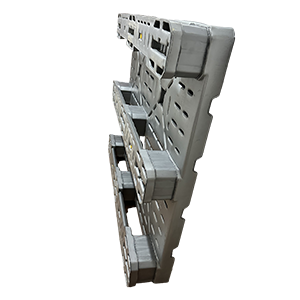

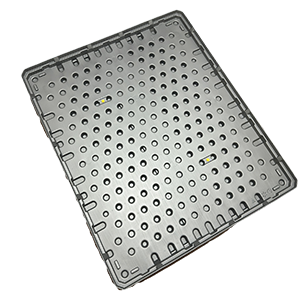

Twin-sheet plastic sleeve boxes 1200*1000-sunken safety stop type

Free Download

Please complete the following for access to the free download.

Item No.HD-CM1210
Material:HDPE(lid & pallet)+PP(honeycomb sheets)
External DIM(mm):1200*1000*760/ 860/ 1000/ 1050/...
Any customized height
Internal DIM(mm):1140*940*330/ 590/ 690/ 830/ 880/...
External -170
sleeve height(mm):Total height-120
Folded height(mm):1200*1000*205
pallet & lid weight (kg):18 kgs(pallet:10kg + lid:8kg)
Locks:Optional, 4 locks at lid,4pcs at bottom pallet
Honeycomb sleeve:11.3mm 3.0kg/m211.3mm 4.0kg/m2
Static load(kg):1+3 (1200kg),height<900mm
1+2 (1200kg),height>900mm		1+3 (2000k g),height<900mm
1+2 (2000kg),height>900mm
Dynamic load(kg):1+2 (900kg),height<900mm
1+1 (900kg),height>900mm		1+2 (1500kg),height<900mm
1+1 (1500kg),height>900mm
Single box load(kg):300Kg500Kg
Folding times:≥30,000 times
Temperature:-20°c- 55°c
Service life:More than 3 years
Folding type:M-folding
Steel Reinforcement:No.
Packing quantity:160 sets/20G460 sets/40H
Runners:Optional,3 runners

FAQ

We suggest to check below details and contact our sales team to get prompt and processional solution.

1. Pallet application
for racks-generally choose 3 runners pallets,full perimeter bottom type pallets and double faced pallets;
for transportation-generally choose 3 runners pallets,full perimeter bottom type pallets and 9 feet pallets;
For one-way delivery-generally choose 9 feet pallets.

2.Pallet size

3.Pallet load capacity
dynamic load, static load and racking load.

Yes, we can customized for any color.

Generally 15-20days against deposit.

  • Customized Logo printing;
  • Customized color;
  • Free det+dem at destination port;
  • Three years quality warranty
