Help Volvo To Pack Auto Lamp Well

TECPACK received a packaging request for automotive taillights from Geely Volvo, after analyzing the product characteristics and transportation turnover needs, we made a recyclable packaging solution that satisfied customers.

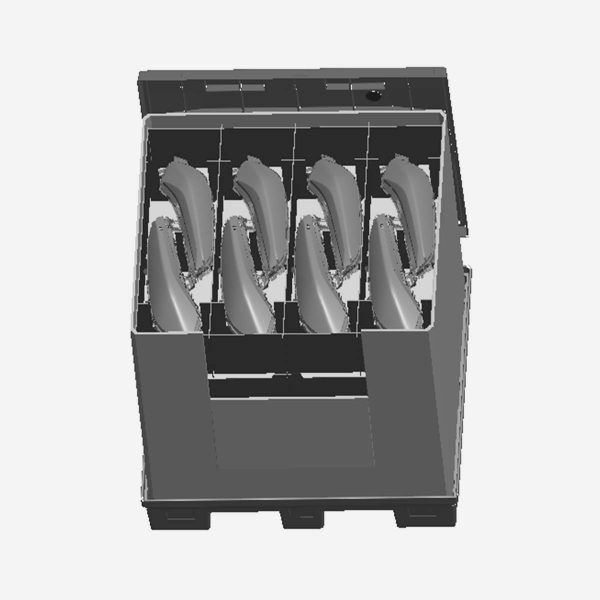

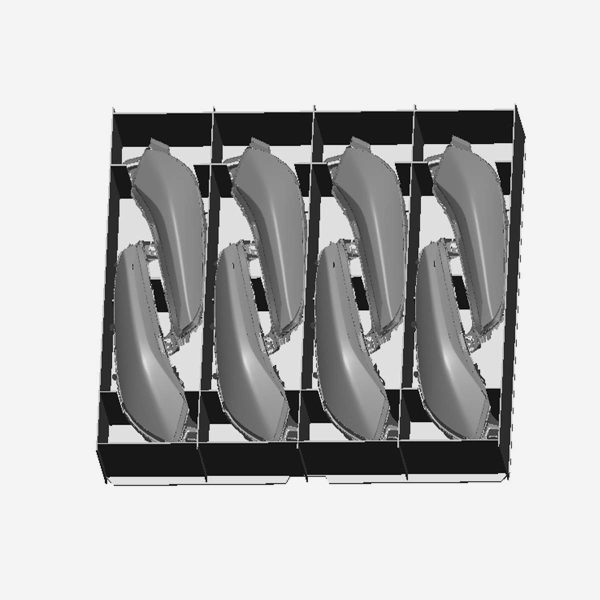

Taking into account the big size and lightweight of automobile taillights, and the delivery needs between different production bases, TECKPACK design team believed that standard-size bulk packaging boxes should be used, and the inner materials can be adopted by hollow sheets, hollow sheets can be cut and insert with each other, then the car taillights can be fixed in a fixed area, and each large box can be placed with 4 layers, so each box can hold 32 car taillights.

Our reusable packaging solutions perfectly help customers solve logistics and transportation problems.

The parameters of the products used in this solution

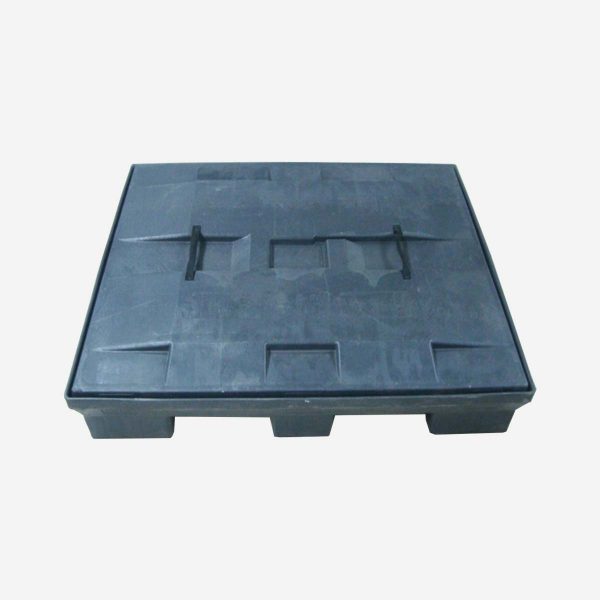

Product namePlastic Sleeve Box
External dim.1200*1000*1060mmCustomerVolvo
Internal Dim1135*935*880mm Qty/box8*4=32 pieces
Folded Height1200*1000*210mmVolume reduced5:1
Stacking 1+1Stacking layers1+2
Single box load300kgPallet typeInjection 3 runners pallet
Unit weight40kgMaterial of inner pacakge4mm corruagated sheet
